Particles left behind by decaying Z bosons reveal strong evidence of quantum entanglement at CERN’s Large Hadron Collider.
Z bosons, heavy elementary particles that decay almost as soon as they form, leave behind clues to a connection that can outlast physical separation. Known as quantum entanglement, this connection links particles’ quantum properties so that measuring one reveals information about the other, even when they are far apart.

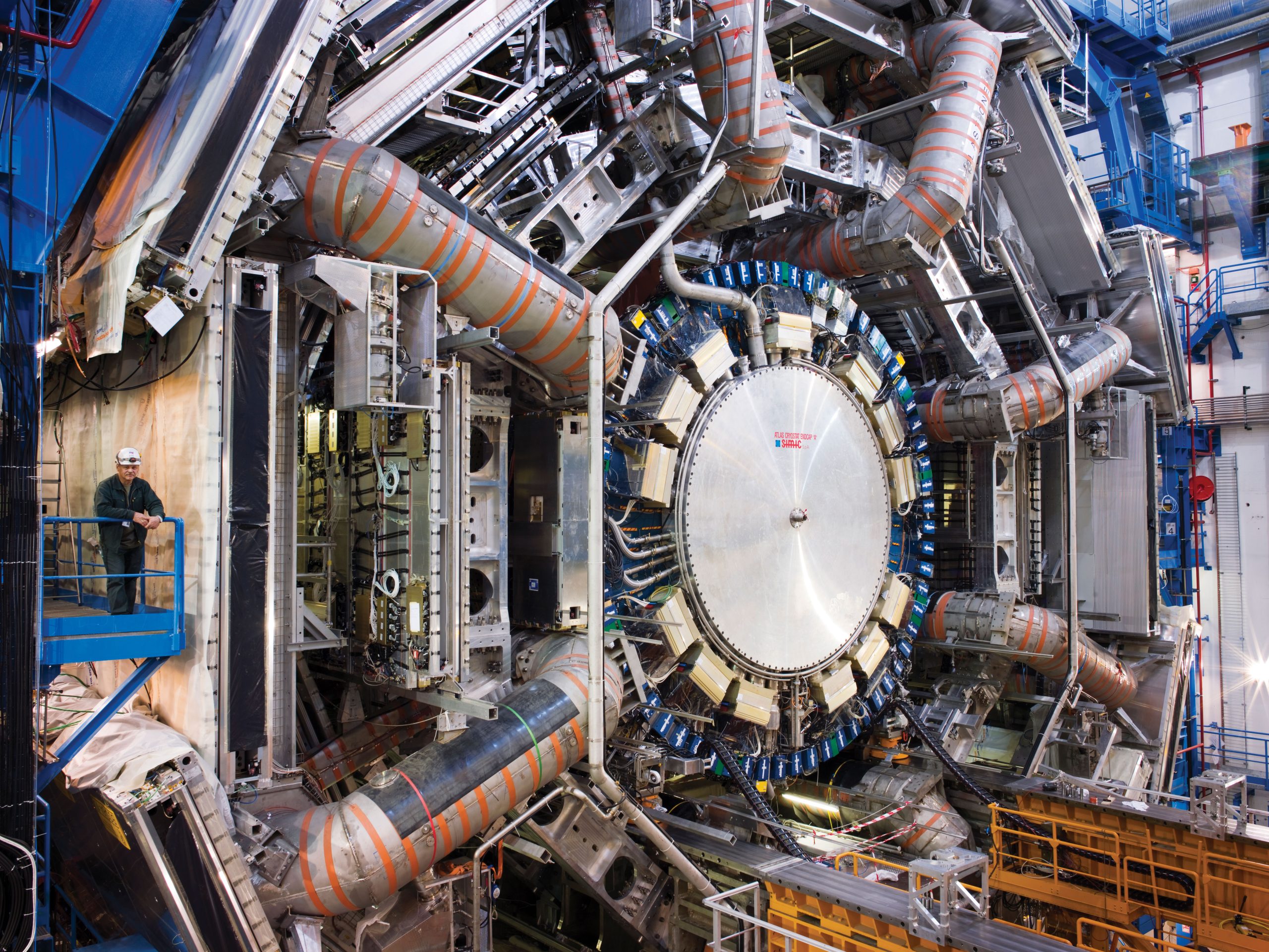

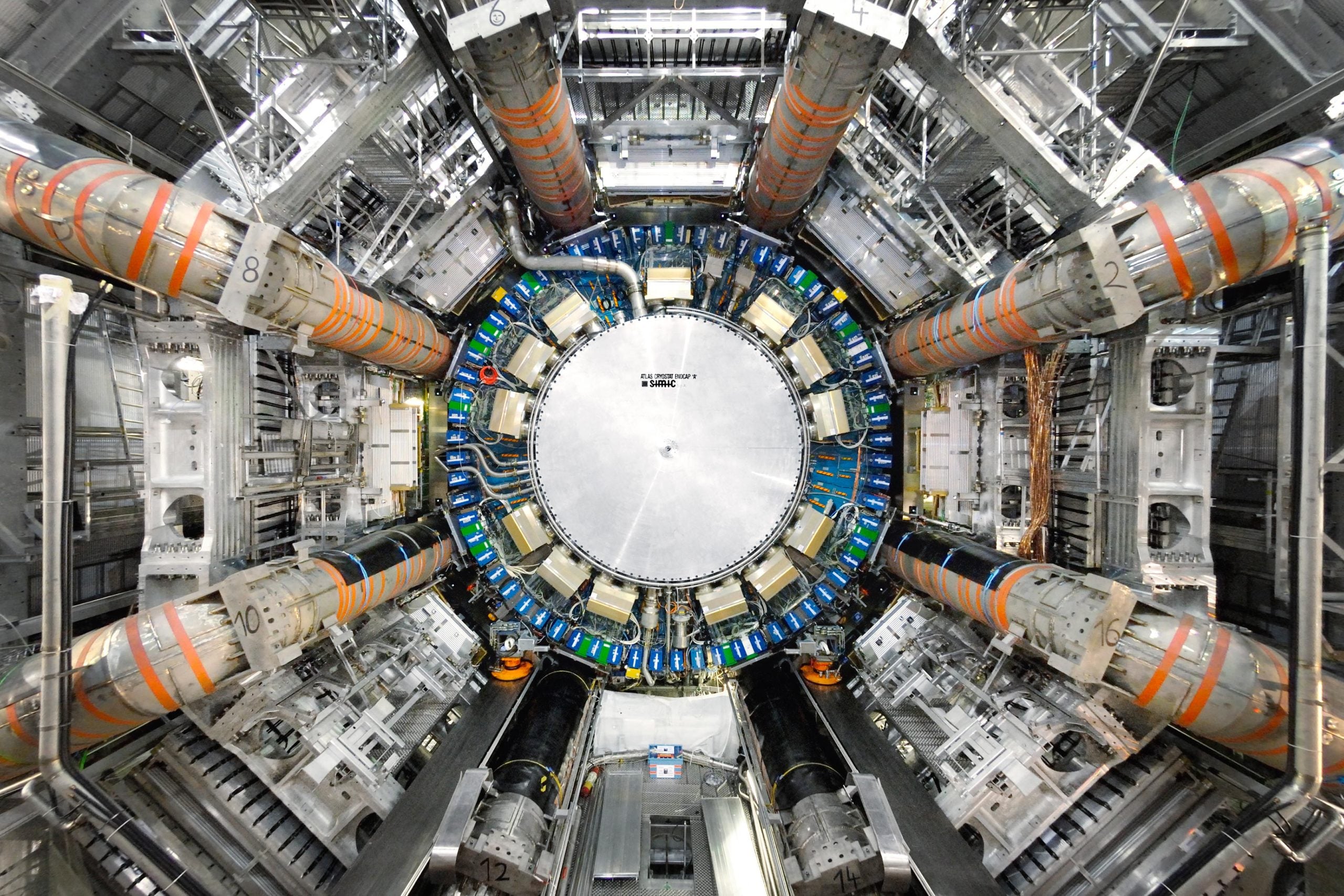

An international team, including physicists at the University of Oxford, has found strong evidence of entanglement between pairs of Z bosons using the ATLAS experiment at CERN’s Large Hadron Collider near Geneva, Switzerland. Published in Physical Review Letters, the findings represent one of the highest-energy confirmations of entanglement ever recorded, extending its study to particles that exist only fleetingly under extreme conditions.
Study co-author Professor Alan Barr, of Oxford’s Department of Physics, said, “We’re used to thinking of entanglement as something delicate, seen in laboratory experiments with single photons. Finding it alive and well among particles as heavy and short-lived as Z bosons, created in some of the most violent collisions we can produce on Earth, shows just how fundamental and robust this quantum effect really is. It’s a nice reminder that the same strange rules of quantum mechanics that may one day power quantum computers are at work everywhere in nature, even at the extreme energies of the Large Hadron Collider.”
Tracing entanglement after Z bosons vanish

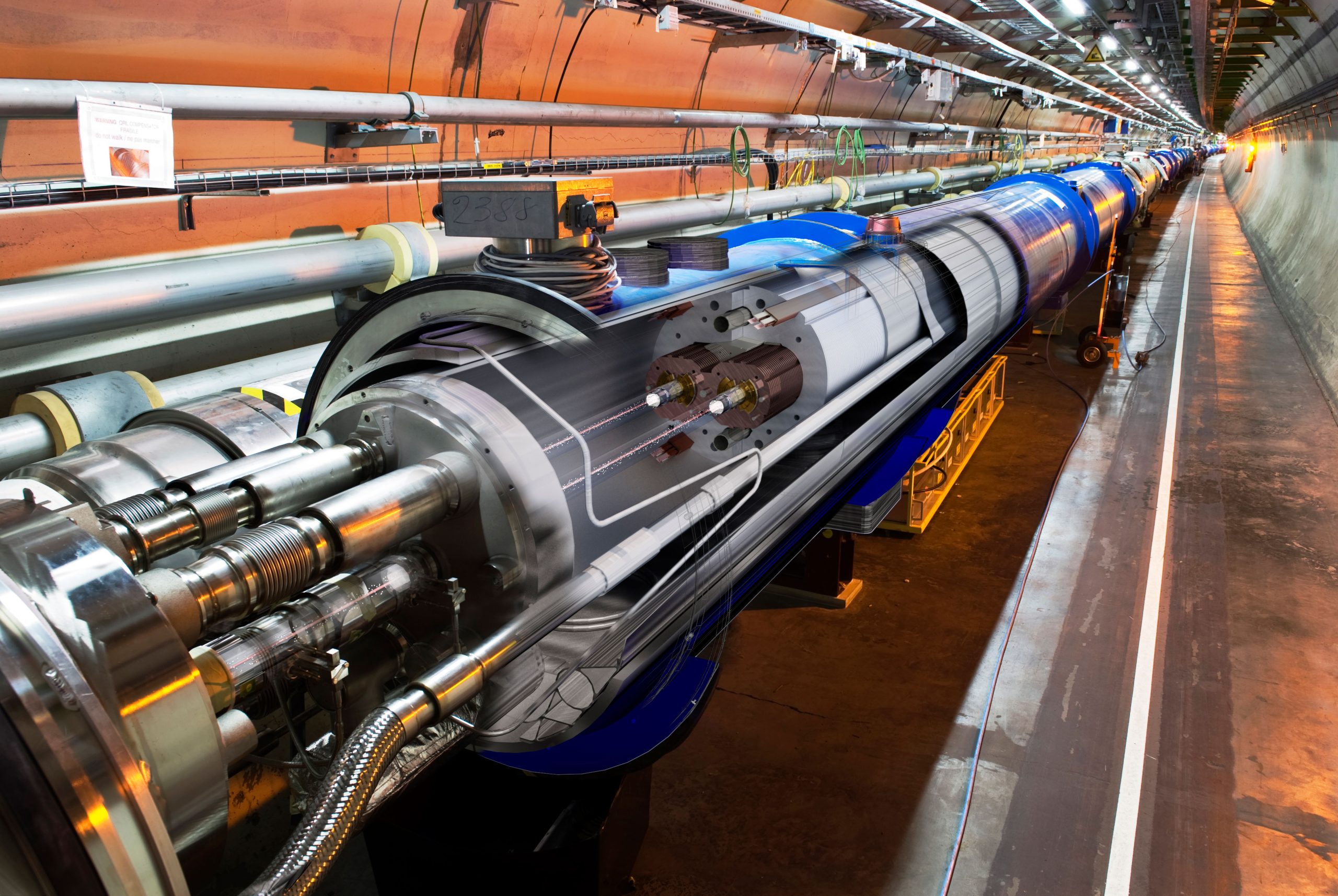

The Z bosons in this study came from the decay of Higgs bosons, the particles discovered at the LHC in 2012. To produce Higgs bosons, the collider smashes together protons traveling at 99.99% of the speed of light, with collision energies of 13 trillion electron volts.
The researchers followed a decay process in which a Higgs boson produces two Z bosons, each of which then decays into a pair of electrons or muons. Muons are particles similar to electrons but heavier. Although the Z bosons disappear almost instantly, ATLAS can precisely track these longer-lasting products of their decay.
The angles at which the electrons and muons emerge carry information about the original Z bosons’ spins, a quantum property related to angular momentum. By reconstructing those angles, the team could infer the spins and test whether they were linked through entanglement. This allowed the researchers to investigate the quantum relationship between particles that had already vanished.
From photons to entangled top quarks
Entanglement has previously been demonstrated with photons, electrons, and trapped ions. Albert Einstein famously described it as “spooky action at a distance,” but testing it in massive, rapidly decaying particles requires a different experimental approach.
Barr, who helped construct the LHC, was among the first to propose using particle colliders to investigate entanglement at energies far beyond those of earlier tests. He recognized that an instrument built to discover particles could also probe their quantum behavior. His ideas informed a 2023 ATLAS experiment that demonstrated entanglement between pairs of top quarks, the heaviest known elementary particles. The Z boson measurement expands that work to another kind of particle.
Quantum tools could reveal new physics
These collider experiments also draw on quantum information science, the field behind quantum computing. Entanglement allows multiple qubits, the basic units of quantum information, to be manipulated in a single operation rather than individually, supporting parallel calculations. It also underpins emerging approaches to highly secure quantum communication networks and new generations of sensors.
Physicists are adapting ideas and tools from that field to analyze collider measurements more sensitively. Such methods could reveal subtle effects that point beyond the current understanding of particle physics.
Larger data sets will give researchers more opportunities to apply those techniques. Oxford researchers are helping upgrade the ATLAS detector, which will work alongside the upgraded High-Luminosity Large Hadron Collider. Together, the improvements are expected to support more detailed investigations of quantum phenomena and provide huge volumes of data for new quantum information methods to analyze.
Professor Daniela Bortoletto, of Oxford’s Department of Physics, coordinates the UK effort to produce modules for the upgraded ATLAS detector’s pixel system. She said, “This measurement demonstrates the scientific power of the ATLAS collaboration and the unique capabilities of CERN’s Large Hadron Collider. Oxford researchers have played a leading role in developing these new approaches to studying quantum phenomena at the highest energies, and we are proud to contribute to an international effort that is opening new ways to explore the fundamental laws of nature.”
The measurements also raise questions about how to interpret quantum mechanics. At Oxford, Barr co-leads an interdisciplinary project that combines experimental tests at the smallest scales and highest energies with philosophical investigations of what those tests reveal about reality.
Project co-principal investigator Professor Chris Timpson, of Oxford’s Faculty of Philosophy, said, “Entanglement is both the most promising and the most puzzling aspect of quantum reality; these collider experiments detecting entanglement present a new frontier in investigations of the foundations of quantum mechanics.”
Reference: “Measurements of Z-Boson Pair Entanglement in Decays of Higgs Bosons at the ATLAS Experiment” by G. Aad, E. Aakvaag, B. Abbott, S. Abdelhameed, K. Abeling, N. J. Abicht, S. H. Abidi, M. Aboelela, A. Aboulhorma et al. (ATLAS Collaboration), 11 September 2026, Physical Review Letters.
DOI: 10.1103/y1nh-1b82
