Researchers from MIT show that a newly discovered kind of magnetic behavior holds great promise as a way of storing data — one that could overcome fundamental limits that might otherwise be signaling the end of “Moore’s Law,” which describes the ongoing improvements in computation and data storage over recent decades.

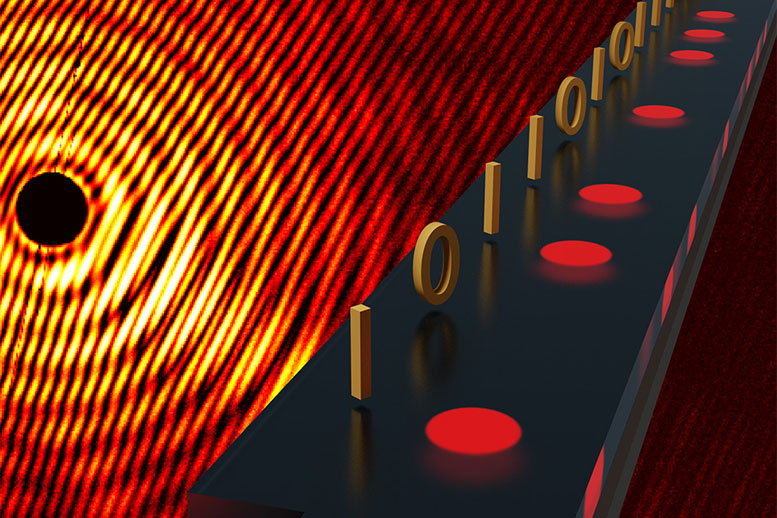

Rather than reading and writing data one bit at a time by changing the orientation of magnetized particles on a surface, as today’s magnetic disks do, the new system would make use of tiny disturbances in magnetic orientation, which have been dubbed “skyrmions.” These virtual particles, which occur on a thin metallic film sandwiched against a film of different metal, can be manipulated and controlled using electric fields, and can store data for long periods without the need for further energy input.
In 2016, a team led by MIT associate professor of materials science and engineering Geoffrey Beach documented the existence of skyrmions, but the particles’ locations on a surface were entirely random. Now, Beach has collaborated with others to demonstrate experimentally for the first time that they can create these particles at will in specific locations, which is the next key requirement for using them in a data storage system. An efficient system for reading that data will also be needed to create a commercializable system.
The new findings are reported this week in the journal Nature Nanotechnology, in a paper by Beach, MIT postdoc Felix Buettner, and graduate student Ivan Lemesh, and 10 others at MIT and in Germany.
The system focuses on the boundary region between atoms whose magnetic poles are pointing in one direction and those with poles pointing the other way. This boundary region can move back and forth within the magnetic material, Beach says. What he and his team found four years ago was that these boundary regions could be controlled by placing a second sheet of nonmagnetic heavy metal very close to the magnetic layer. The nonmagnetic layer can then influence the magnetic one, with electric fields in the nonmagnetic layer pushing around the magnetic domains in the magnetic layer. Skyrmions are little swirls of magnetic orientation within these layers, Beach adds.
The key to being able to create skyrmions at will in particular locations, it turns out, lay in material defects. By introducing a particular kind of defect in the magnetic layer, the skyrmions become pinned to specific locations on the surface, the team found. Those surfaces with intentional defects can then be used as a controllable writing surface for data encoded in the skyrmions. The team realized that instead of being a problem, the defects in the material could actually be beneficial.
“One of the biggest missing pieces” needed to make skyrmions a practical data-storage medium, Beach says, was a reliable way to create them when and where they were needed. “So this is a significant breakthrough,” he explains, thanks to work by Buettner and Lemesh, the paper’s lead authors. “What they discovered was a very fast and efficient way to write” such formations.
Because the skyrmions, basically little eddies of magnetism, are incredibly stable to external perturbations, unlike the individual magnetic poles in a conventional magnetic storage device, data can be stored using only a tiny area of the magnetic surface — perhaps just a few atoms across. That means that vastly more data could be written onto a surface of a given size. That’s an important quality, Beach explains, because conventional magnetic systems are now reaching limits set by the basic physics of their materials, potentially bringing to a halt the steady improvement of storage capacities that are the basis for Moore’s Law. The new system, once perfected, could provide a way to continue that progress toward ever-denser data storage, he says.
The system also potentially could encode data at very high speeds, making it efficient not only as a substitute for magnetic media such as hard discs, but even for the much faster memory systems used in Random Access Memory (RAM) for computation.
But what is still lacking is an effective way to read out the data once it has been stored. This can be done now using sophisticated X-ray magnetic spectroscopy, but that requires equipment too complex and expensive to be part of a practical computer memory system. The researchers plan to explore better ways of getting the information back out, which could be practical to manufacture at scale.
The X-ray spectrograph is “like a microscope without lenses,” Buettner explains, so the image is reconstructed mathematically from the collected data, rather than physically by bending light beams using lenses. Lenses for X-rays exist, but they are very complex and cost $40,000 to $50,000 apiece, he says.
But an alternative way of reading the data may be possible, using an additional metal layer added to the other layers. By creating a particular texture on this added layer, it may be possible to detect differences in the layer’s electrical resistance depending on whether a skyrmion is present or not in the adjacent layer. “There’s no question it would work,” Buettner says, it’s just a matter of figuring out the needed engineering development. The team is pursuing this and other possible strategies to address the readout question.
The team also included researchers at the Max Born Institute and the Institute of Optics and Atomic Physics, both in Berlin; the Institute for Laser Technologies in Medicine and Metrology at the University of Ulm, in Germany; and the Deutches Elektroniken-Syncrotron (DESY), in Hamburg. The work was supported by the U.S. Department of Energy and the German Science Foundation.
Reference: “Field-free deterministic ultrafast creation of magnetic skyrmions by spin–orbit torques” by Felix Büttner, Ivan Lemesh, Michael Schneider, Bastian Pfau, Christian M. Günther, Piet Hessing, Jan Geilhufe, Lucas Caretta, Dieter Engel, Benjamin Krüger, Jens Viefhaus, Stefan Eisebitt and Geoffrey S. D. Beach, 2 October 2017, Nature. Nanotechnology.
