CT scans and DNA revealed that Australia’s rare sea muppets only look like seahorses and actually belong to a separate evolutionary lineage.
A tiny fish from southern Australia could easily be mistaken for a seahorse. Its head bends downward in the same horse-shaped profile, its tail curls tightly enough to grasp, and males carry their young in a fully enclosed brood pouch.
Yet the fish, which grows no longer than a human thumb, is not actually a seahorse. As described in a new study in the Journal of Lost Species, it is Australyichthys aegis, a newly described species from deep reefs off southern Australia. Researchers have named it the helmethead sea muppet because of the domed, helmet-like crest on its head.
Its scientific name also refers to that distinctive feature. In Greek mythology, the aegis was a protective shield. Along with two relatives, the bullneck sea muppet (A. minotaur) and the paradoxical sea muppet (A. paradoxus), the species belongs to a small group researchers informally call the sea muppets.
Evidence now shows that all three occupy their own branch of the evolutionary family tree. Their resemblance to seahorses is not the result of belonging to the same lineage, but another example of the seahorse body form evolving independently. The clues needed to recognize that distinction had been preserved for decades in museum collections, where the specimens had been misidentified.
Museum specimens hid a separate lineage
These fish live too deep to encounter on a typical scuba dive.
Every known specimen has been collected accidentally in trawl nets or dredges operating along the seafloor at depths of roughly 50 to 125 meters. The only known specimen of A. aegis was recovered in 2006 near the Gambier Islands at the entrance to South Australia’s Spencer Gulf.
It was caught during a natural history expedition using a dredge to collect brachiopods, small-shelled animals. Because the expedition focused on invertebrates, the fish was mistakenly placed in the South Australian Museum’s invertebrate collection, where it remained unrecognized for years.
After each chance capture, the fish were preserved, then largely forgotten. The rest are held in Australian museum collections, among them the Australian Museum, Museums Victoria and CSIRO.
The whole genus is known from just seven specimens gathered over about 65 years, scattered across more than 2,500 kilometers of coastline, and nothing has been collected in nearly two decades.
Skeletons overturned the seahorse identification

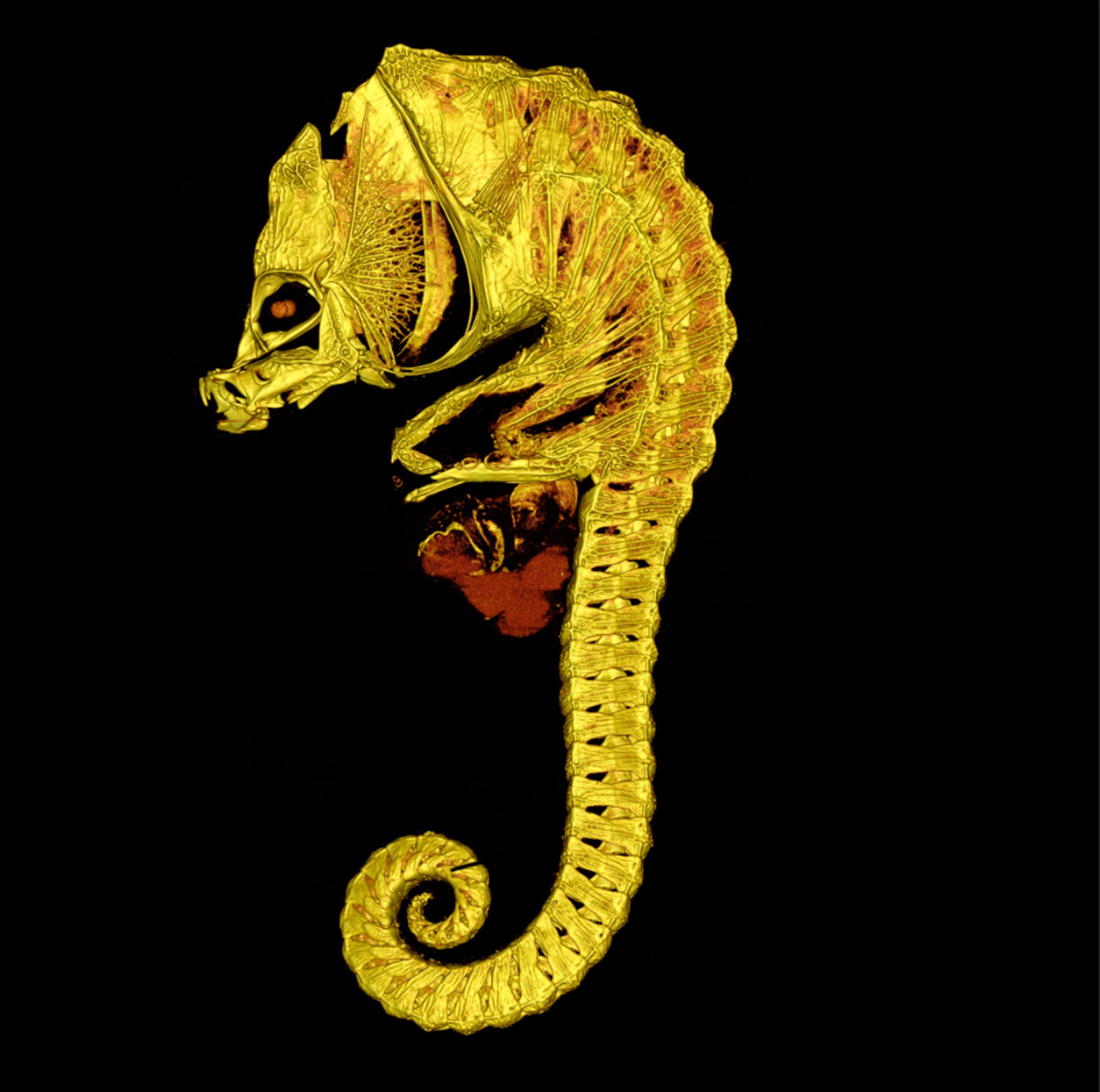

The specimens are irreplaceable, so we could not dissect them. Instead, we used micro-CT scanning, the same X-ray technology used in hospitals but fine enough to resolve tiny bones.
That let us build three-dimensional models of each fish’s skeleton and compare them bone by bone with true seahorses (Hippocampus).
Every earlier assessment had rested on external appearance, and the skeletons did not support it. Seahorses have a particular internal architecture, including a rigid cage of fused bony plates supporting the belly and a bony crown, called a coronet, on the head.
Our scans showed that Australyichthys has neither. In their place is a different arrangement of bones supporting the belly, one that appears in no seahorse.
DNA confirmed a different evolutionary branch
Only one specimen could give us DNA.
A. aegis had been fixed in ethanol rather than formalin, the only member of the genus stored that way, and ethanol leaves genetic material intact. Sequencing it placed the fish well outside the seahorses, on the branch that is their closest relative. The genes said what the bones had already said.
All three species had been placed in the seahorse genus on the strength of how they look, and on that evidence they were seahorses. They are not, and they needed a genus of their own. We named it Australyichthys, from the Latin for southern and the Greek for fish.
When separate lineages evolve to look alike, biologists call it convergent evolution, and it usually reflects a shared way of life rather than shared ancestry.
The whole seahorse body, with its bent head, gripping tail, and brood pouch, has been built at least twice within a single fish family, the Syngnathidae, which includes seahorses, pipefishes, pipehorses, and seadragons.
Working out how that happened may reveal why evolution keeps arriving at the same solution.
Lost species remain hidden offshore
All this happened along the Great Southern Reef, the connected system of kelp forests and rocky reefs that rings southern Australia. Many of its species are found nowhere else, and its deeper zones are barely explored.
In fact, an entire genus of vertebrate hid there, misidentified, until a CT scanner settled the question.
No one has ever seen one of these fish alive; they have turned up only by chance in a passing net or dredge. On that record, they now qualify as lost species, known from a handful of preserved animals and never from a living one.
Calling them lost is not a prediction of extinction. It marks them as a priority for targeted surveys that go looking rather than waiting for the next accidental catch. They are most likely still down there, in a part of the sea we hardly ever visit.
Reference: “Australyichthys gen. nov. (Teleostei, Syngnathidae), a lost mesophotic lineage from southern Australia, with description of A. aegis sp. nov. and reclassification of Hippocampus minotaur and H. paradoxus” by Graham Short, Ralph Foster, Martin Gomon, Susan Bassham, Clayton Small, Healy Hamilton, Alexander DuToit, Christina Biggs, David Harasti, Kerryn Parkinson and Amanda Hay, 29 July 2026, Journal of Lost Species.
DOI: 10.66264/y1ffbcwb
Adapted from an article originally published in The Conversation.
